Sumo 1-3 Hp Submersible Sewage Pump

Get a Price/Quote

Product Details:

Theory Centrifugal Pump
Flow Rate Up to 250 LPM
Material Cast Iron
Structure Submersible Pump
Suction Type Single Suction
Volute Type Single
Nozzle Location Vertical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Sumo 1-3 Hp Submersible Sewage Pump Price And Quantity

Minimum Order Quantity 1 Unit

Sumo 1-3 Hp Submersible Sewage Pump Product Specifications

Volute Type Single
Flow Rate Up to 250 LPM
Suction Type Single Suction
Nozzle Location Vertical
Speed 2800 RPM
Temperature Upto 40C
Shaft Orientation Vertical
Inlet, Outlet Diameter 50 mm, 50 mm
Structure Submersible Pump
Application Sewage, waste water management, dewatering, wastewater treatment plants, municipal and industrial drainage
Power Source Electric
Pressure Medium Pressure
Material Cast Iron
Theory Centrifugal Pump

Impeller Type Semi-open
Frequency 50 Hz
Motor Power Range 1 HP to 3 HP
Cable Length 5 meters standard
Voltage 220V / 415V AC
Phase Single Phase / Three Phase
Cooling Water cooled
Maximum Delivery Head Up to 18 meters
Solid Handling Capacity Up to 40 mm
Mounting Vertical, submersible
Protection Class IP68
Insulation Class Class B / F
Pump Type Non-clog Submersible Pump

Sumo 1-3 Hp Submersible Sewage Pump Trade Information

Supply Ability 100 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Other Products in 'Centrifugal Pump' category

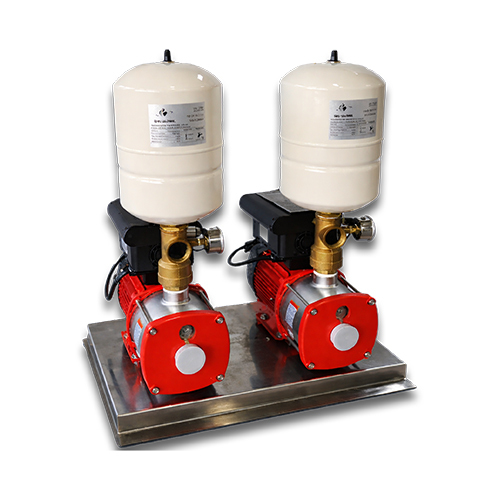

Water Booster Pump System Minimum Order Quantity : 1 Structure : Other, Singlestage Pump Theory : Centrifugal Pump Pressure : Other, Up to 10 Bar Material : Cast Iron / Stainless Steel Power Source : Electric Application : Other, Water Supply, Pressure Boosting, Domestic, Commercial and Industrial Buildings Inlet, Outlet Diameter : Inlet: 50 mm, Outlet: 40 mm Temperature : Other, Up to 80C Shaft Orientation : Horizontal Suction Type : Other, Single Suction Volute Type : Other, End Suction Flow Rate : Up to 10 m3/h Nozzle Location : Other, Horizontal Speed : 2900 RPM Fuel System : Other, Electric Motor Driven

Send Inquiry

Sumo Alpha SAH High Pressure Pump Minimum Order Quantity : 1 Structure : Other, Monoblock Theory : Centrifugal Pump Pressure : Other, Up to 18 bar Material : Cast Iron / Stainless Steel Power Source : Electric Application : Other, Hydraulic Testing, Boiler Feeding, Pressure Boosting, Industrial Washing, Water Circulation Inlet, Outlet Diameter : 50 mm x 40 mm Temperature : Other, Up to 120C Shaft Orientation : Horizontal Suction Type : Other, Single Suction Volute Type : Other, Single Volute Flow Rate : Up to 12 m3/hr Nozzle Location : Other, End Suction Speed : 2900 RPM Fuel System : Other, Motor Driven

Send Inquiry

Progressive Cavity Pump Minimum Order Quantity : 1 Structure : Other, Helical Rotor & Stator Assembly Theory : Progressive Cavity Principle Pressure : Other, up to 24 bar (max) Material : Cast Iron, Stainless Steel, Super Duplex, as per application Power Source : Other, Electric Motor driven Application : Other, Sludge, Slurry, Wastewater, Food, Pharma, Chemical, Pulp & Paper, Oil & Gas industries Inlet, Outlet Diameter : Inlet: 25 mm to 200 mm, Outlet: 25 mm to 200 mm Temperature : Other, up to 120C Shaft Orientation : Horizontal Suction Type : Other, Single Suction Volute Type : Other, Single Volute Flow Rate : up to 120 m3/hr Nozzle Location : Other, End Suction, Top Discharge Speed : up to 1450 rpm

Send Inquiry

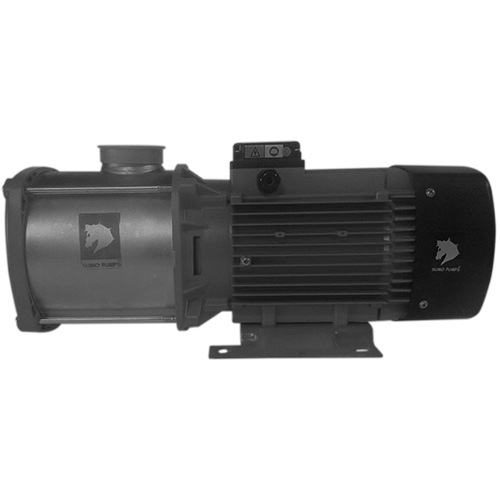

Horizontal Multistage Centrifugal Pump Minimum Order Quantity : 1 Structure : Other, Horizontal Multistage Theory : Centrifugal Pump Pressure : Other, Up to 40 bar Material : Cast Iron, Stainless Steel Power Source : Other, Electric Motor Application : Other, Water supply, Pressure boosting, Boiler feed, Irrigation, HVAC, Industrial circulation Inlet, Outlet Diameter : 32 mm to 150 mm Temperature : Other, Up to 120C Shaft Orientation : Horizontal Suction Type : Other, Axial Volute Type : Other, Segmental Flow Rate : 2 m3/h to 240 m3/h Nozzle Location : Other, End Suction, Top Discharge Speed : 2900 rpm or 1450 rpm

Send Inquiry
